YK-100 Customized Wet Powder Oscillating Granulator

YK-100 Customized Wet Powder Oscillating Granulator

Oscillating Granulator is used for both wet and dry granulation process. This machine is made according to our client's requirement. JUNZHUO MACHINERY provides all spare parts for you.

Quantity:

Share this:

Inquire Add to Basket

Product Description
Technical Data
Working Principle
Main Parts

This is a very popular granulating machine used for forming the required particle sizes from wet powder material, or crushing dried blocks into granules as you need. Our YK100 oscillating granulators are widely used in pharmaceutical, food, chemical, cosmetic and nutrition industries.

YK 100 oscillating granulator has 1.1kw motor, with the capacity of 30 to 200kg/h, the output capacity depends on material characteristic and screen mesh sieve. Oscillation speed is 55 rpm, it can be controlled by inverter. Motor is controlled by push button station, driven by reduction gear box. Open hopper, continuous adding raw materials, a detachable cover is available. It has 4 moveable wheels has bracket assembly, easy to clean, maintain and operate.

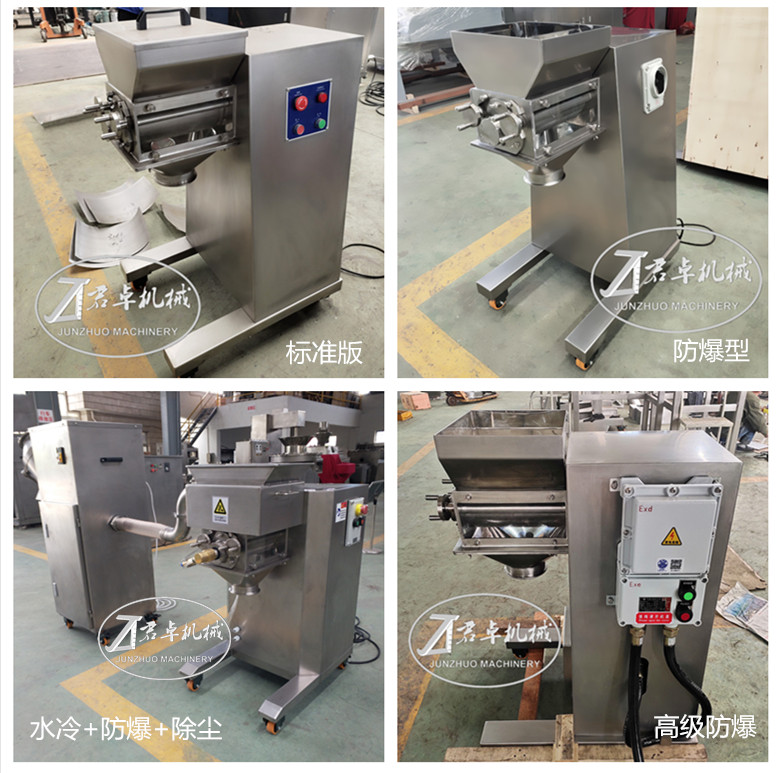

JUNZHUO MACHINERY offers customized design, such as hermetic seal , explosion proof motor, dust collector and so on. Please do not hesitate to send the URS to us, we will help you to find the unique one to meet your requirement.

Salient Features:

Design is cGMP – Current Good Manufacturing Practices compliance.

All Product contact parts AISI 316 & non-contact parts AISI 304.

Uniformly granulation & fewer fines of wet material and dry materials.

Easy to operate, move, clean, maintain

An Inline granulation & user friendly.

Dust-free crushing

Model size from YK60 to YK350, YK-60 oscillating granulator is the smallest model, which can be used for lab testing.

Model	Capacity	Rotor Size	Power	Rotor Speed	Overall size	Weight
YK-60	1-15kg/h	60 mm	0.55kw	65r/min	430190475mm	30 kg
YK-60 New （new）	1-15kg/h	60 mm	0.55kw	65r/min	520300875mm	60kg
YK-80	15-50 kg/h	80 mm	0.75 kw	55 r/min	950300610mm	80 kg
YK-100	30-200 kg/h	120 mm	1.1 kw	55 r/min	7004001050mm	150 kg
YK-140	80-300kg/h	140 mm	2.2kw	55r/min	9006201050mm	180 kg
YK-160	50-300 kg/h	160 mm	3 kw	60r/min	8508201080mm	210 kg
YK-160D	100-400 kg/h	160 mm	5.5 kw	55r/min	9507801210mm	300 kg
YK-160Z	100-400 kg/h	160 mm	5.5 kw	40 r/min	11607201250mm	450 kg
YK-250	150-550 kg/h	250 mm	5.5 kw	40-50 r/min	11508201270mm	600 kg
YK-250D	200-600 kg/h	250 mm	7.5 kw	40-50 r/min	12509501300mm	750 kg
YK-250Z	300-600 kg/h	250 mm	11 kw	40 r/min	17009001350mm	1000kg
YK-320	300-800 kg/h	320 mm	7.5 kw	35 r/min	14008001500mm	800 kg
YK-320D	300-800 kg/h	320 mm	11 kw	35 r/min	14508001500mm	1050 kg
YK-320Z	300-800 kg/h	320 mm	15 kw	35 r/min	17009001400mm	1250 kg
YK-350	400-1200 kg/h	350 mm	11-15 kw	35 r/min	21008601540mm	1250 kg

The principle of an oscillating granulator is to mechanically pass compacted material through a wire mesh screen or plate using an oscillating rotoThe principle of an oscillating granulator is to mechanically pass compacted material through a wire mesh screen or plate using an oscillating rotor. The rotor speed and rotation time are variable in the clockwise or counterclockwise directions. Particle size is controlled through mill-screen size, rotor speed, and the rotor's rotation angle.

YK-100 Sway Granulator

JUNZHUO MACHINERY offerrs all the spare parts, such as the rotor,screen sieve and hand wells. Screen sieves can be made by perforated plate or mesh sieve or nylon, it just depends on your requirement.

Screen Sieves
